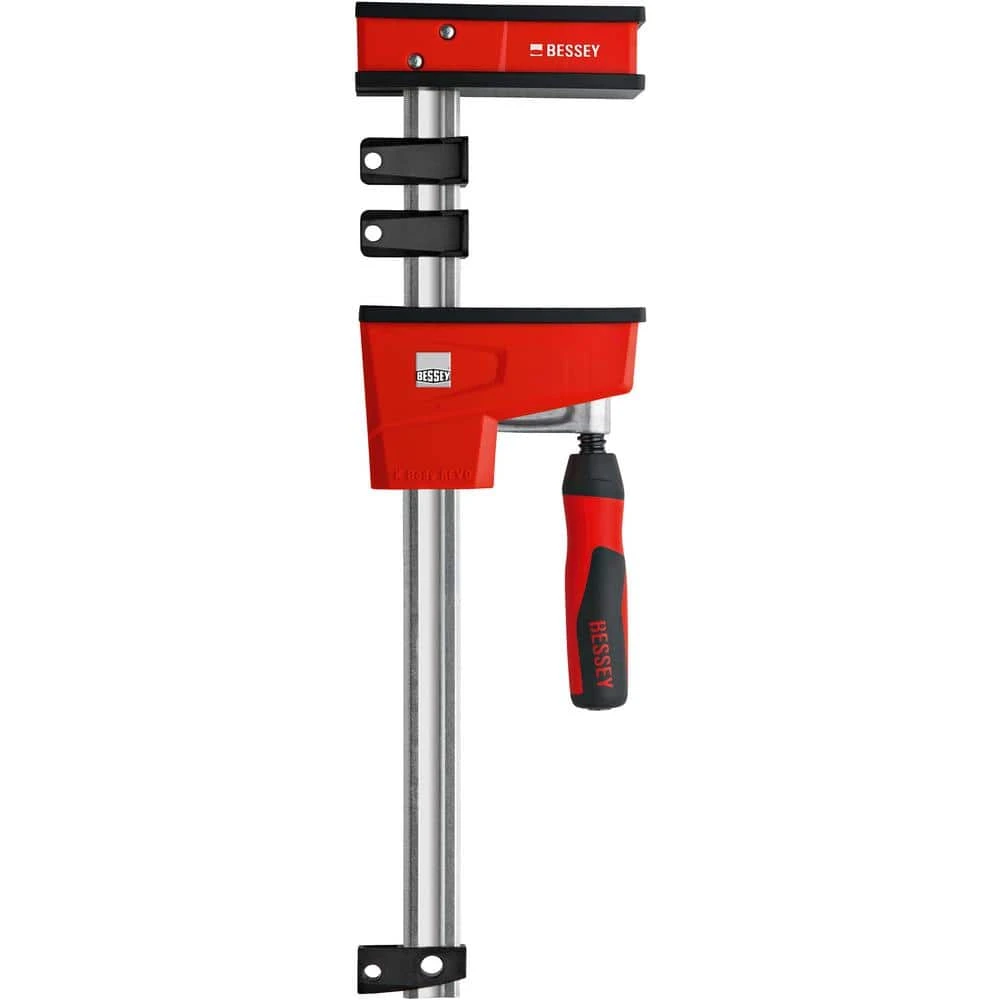

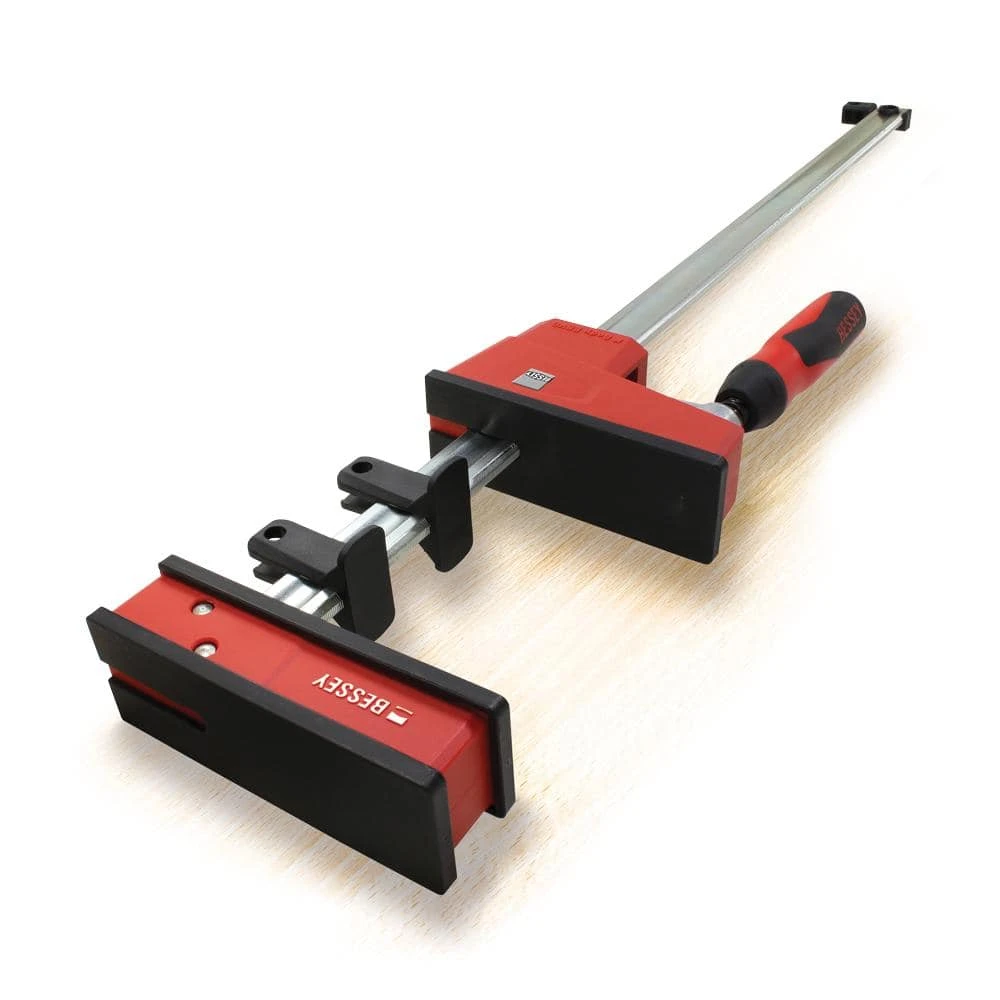

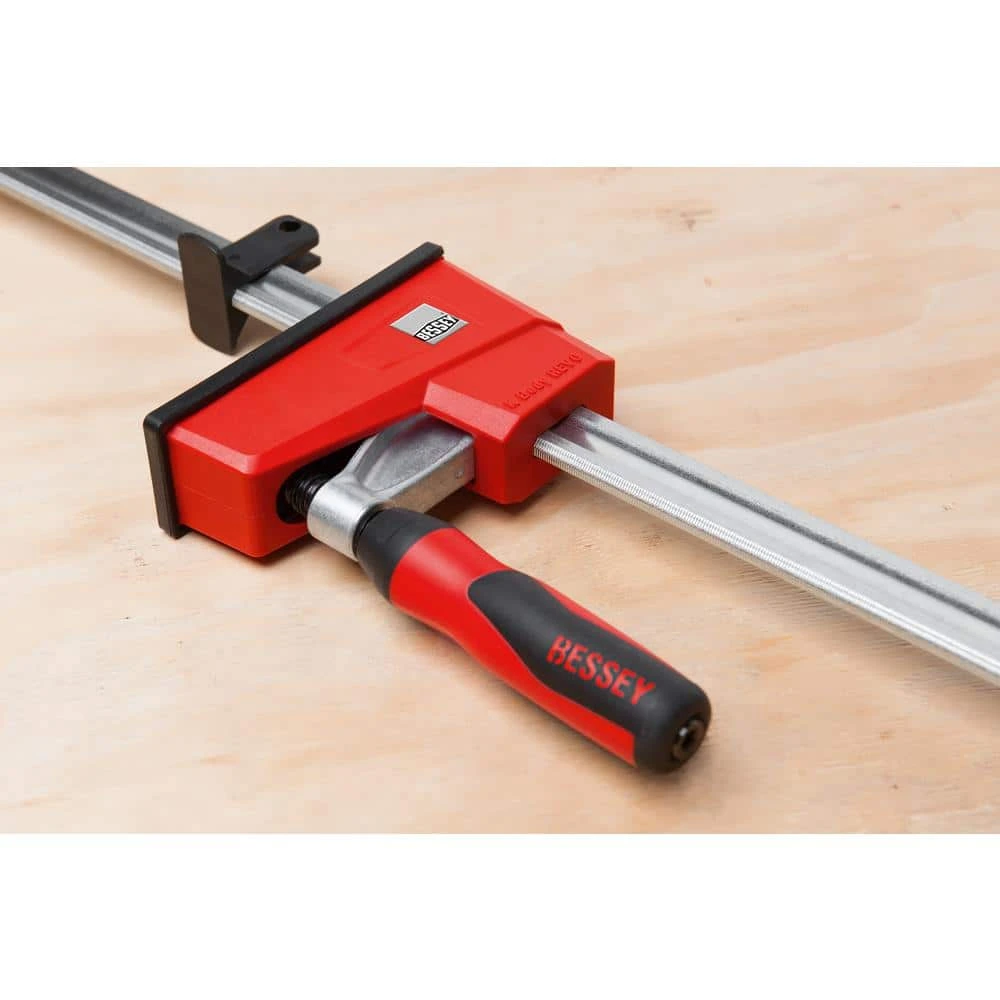

BESSEY K-Body REVOlution (KRE) 24 in. Capacity Parallel Clamp with Composite Plastic Handle and 3-3/4 in. Throat Depth

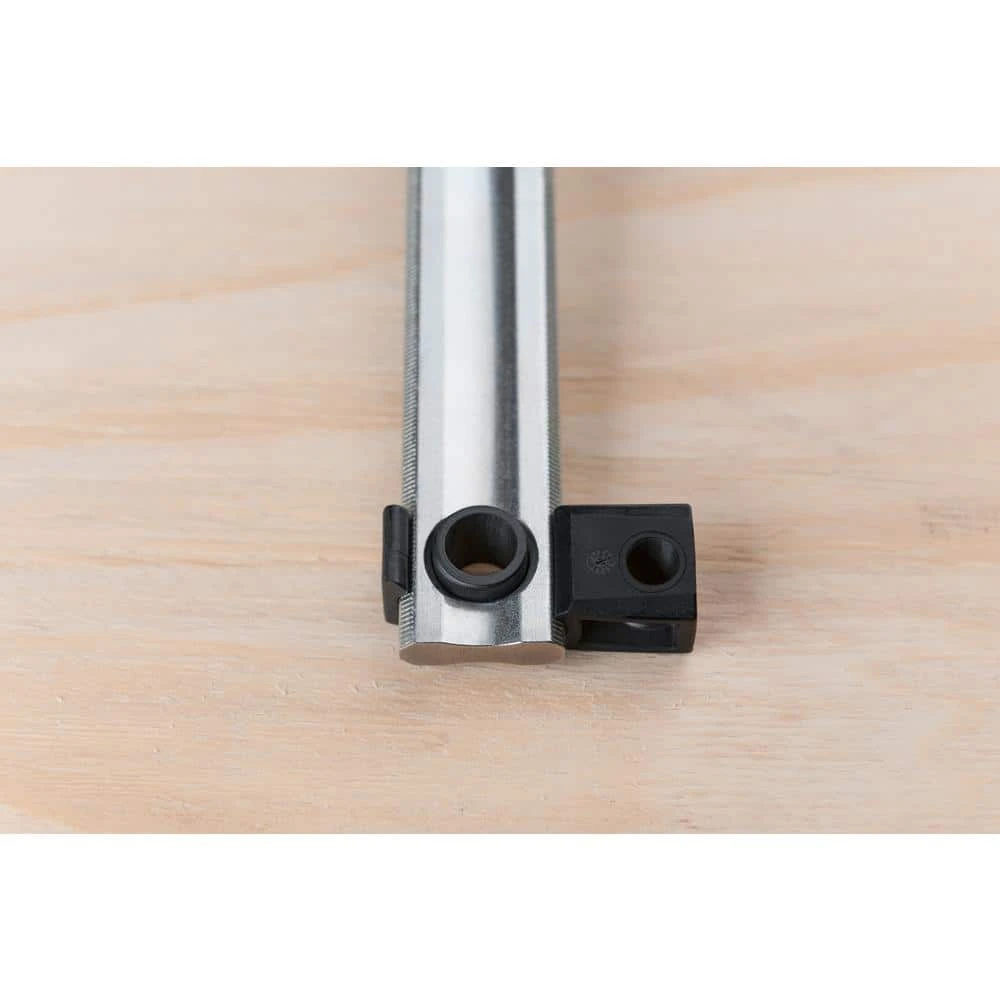

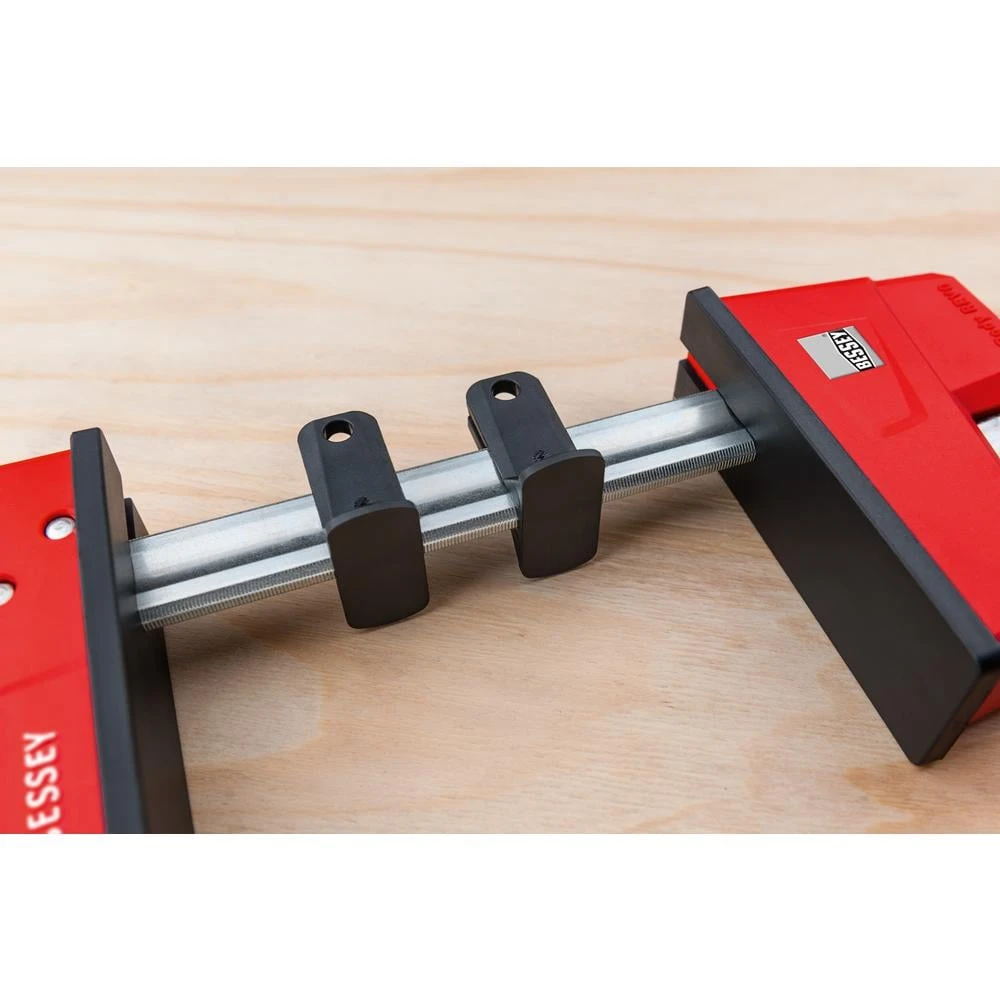

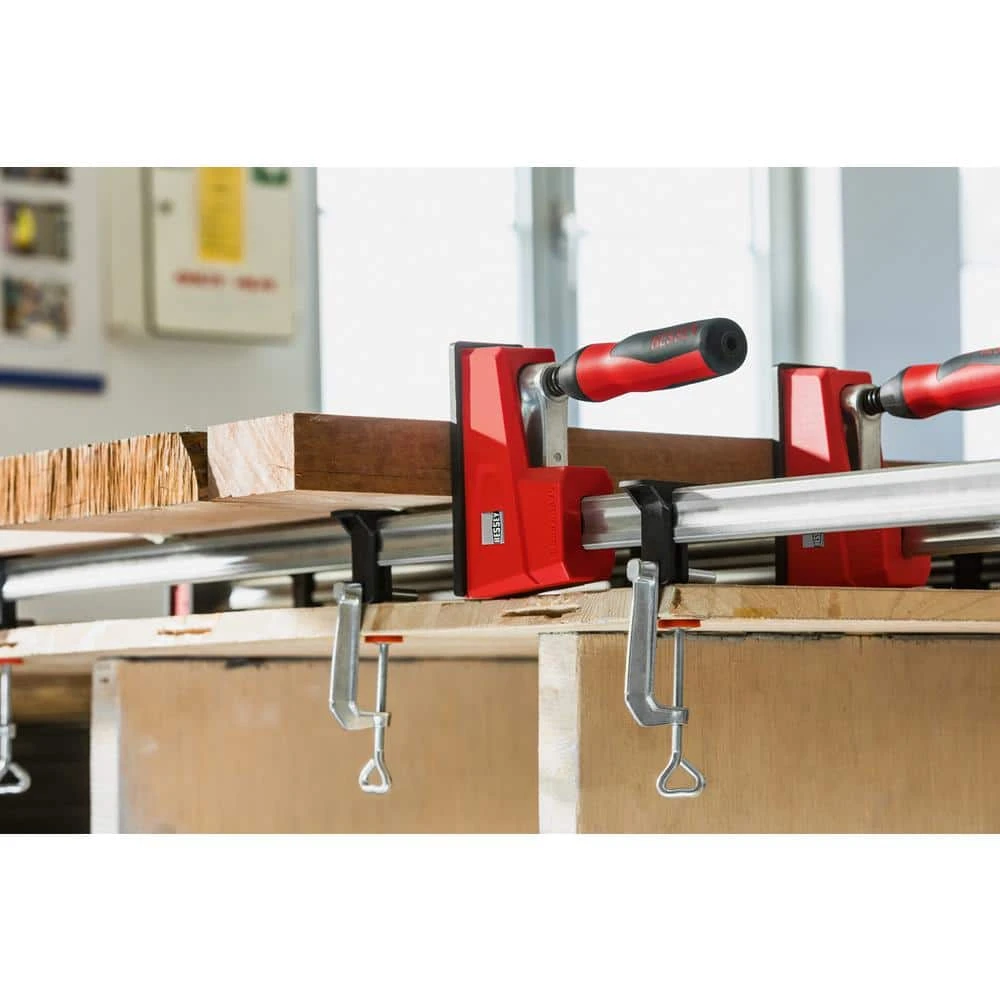

The BESSEY K-Body REVO has large parallel jaws designed to clamp at a nominal 90°. The K-Body REVO is rated at 1700 lbs. of clamping force and has a 3-3/4 in. throat depth. Also included as standard parts are 3 glue-resistant removable jaw pads, 2 rail protection pads and an end clip that helps to balance the clamp during glue-ups. The end clip and the rail protection pads have through holes for use with optional TK-6 hold-down clamps to temporarily affix the clamp to a workbench or other surface up to 2 in. thick. An ergonomic composite handle for better comfort and grip comes standard. Other accessories are available. All figures used for reference are nominal and not precise indicators.

• Parallel jaws clamp at a nominal 90° angle
• Rated at 1700 lbs. of clamping force
• Jaws Clamp at accurate 90° angle.
• Easily converts to a spreader function
• Replaceable protective pads on the jaws

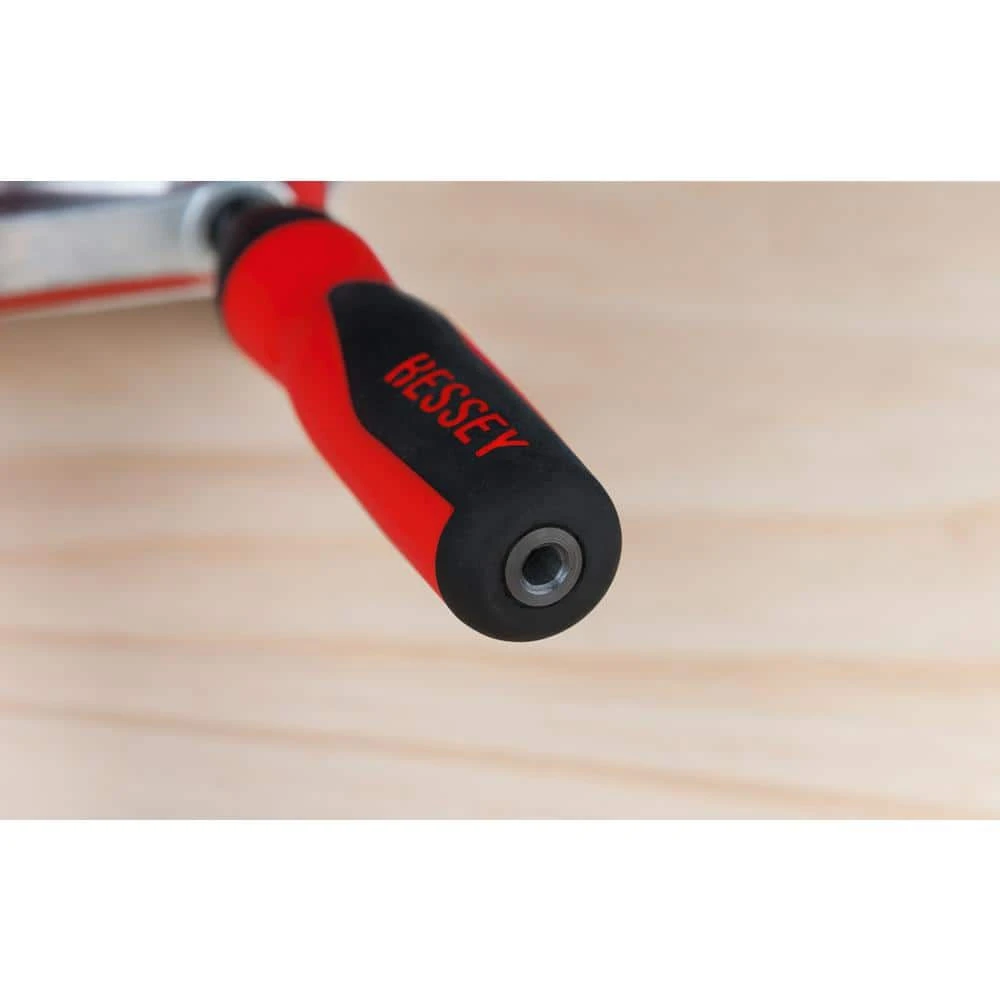

• 6 mm hex socket on end of handle
• Maximum torque 17 Nm (12.5 lbs./ft.)
• Accessories and replacement parts available
